Ambient Temperature Sensor Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-9. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION .)
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
  4. Disconnect the connector.

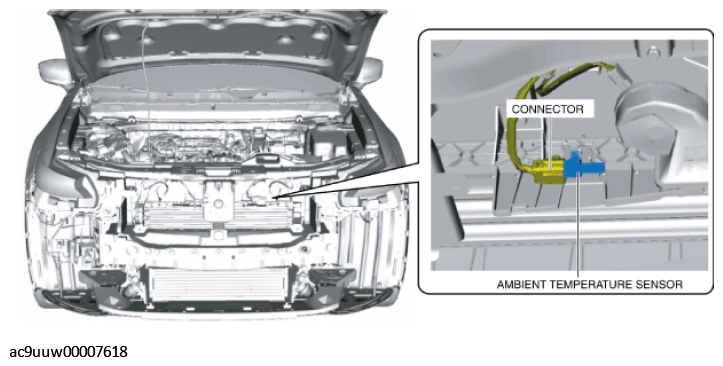

    Fig 1: Ambient Temperature Sensor Connector Location
    G11433637Courtesy of MAZDA MOTORS CORP.
  5. Remove the clip.

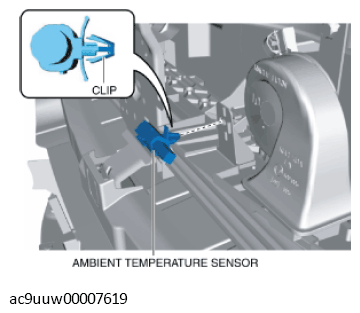

    Fig 2: Removing Ambient Temperature Sensor Clip
    G11433638Courtesy of MAZDA MOTORS CORP.
  6. Remove the ambient temperature sensor.
  7. Install in the reverse order of removal.
