Front Stabilizer Bracket Removal Note

If the front stabilizer bracket cannot be removed by hand, remove it using a vise.

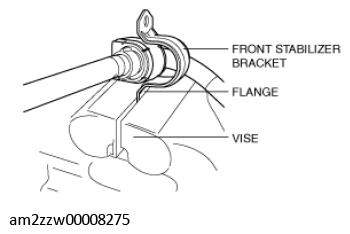

Fig 1: Removing Front Stabilizer Bracket Using Vise
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- The front stabilizer bracket may be deformed if it is removed using a vise. When removing the front stabilizer bracket using a vise, secure the front stabilizer bracket flange to the vise as shown in the figure, then remove it.
