Rear Coil Spring Installation Note

Install the rear coil spring as shown in the figure.

Fig 1: Rear Coil Spring Installation Position
Courtesy of MAZDA MOTORS CORP.
Align the upper end of the rear coil spring with the upper spring seat rubber.
Align the lower end of the rear coil spring with the step of the lower spring seat rubber.
Position the jack under the rear lower arm and jack up slowly.

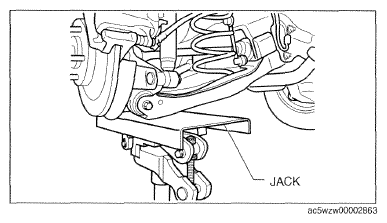

Fig 2: Positioning Jack Under Rear Lower Arm
Courtesy of MAZDA MOTORS CORP.
Install the rear lower arm outer bolt.
