On-Board Diagnostic - Headlight Auto Leveling Control Module
›
On-Board Diagnostic Wiring Diagram [Auto Leveling Control Module]
›
Without Auto Leveling Sensor
Without Auto Leveling Sensor

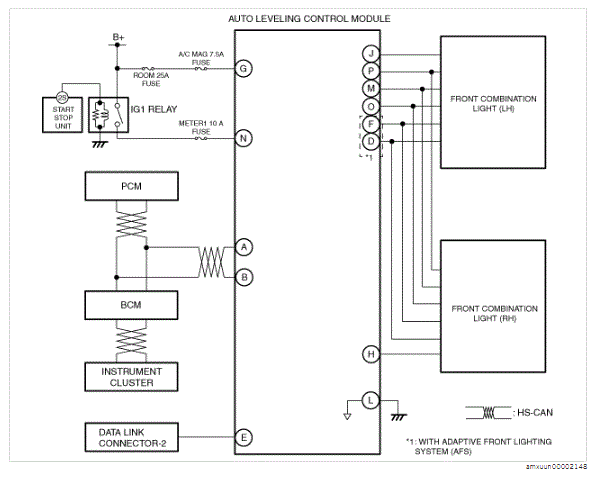

Fig 1: Auto Leveling Control Module - On-Board Diagnostic Wiring Diagram (Without Auto Leveling Sensor)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
