DSC HU/CM Connector Installation Note

Connect the connector and pull the lock lever up in the direction of the arrow.

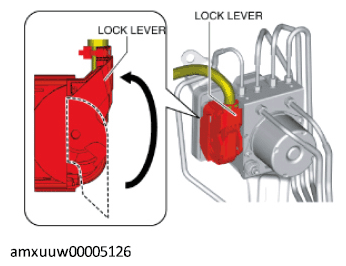

Fig 1: Connecting DSC HU/CM Connector Lock Lever
Courtesy of MAZDA MOTORS CORP.
After connecting the connector, verify that the connector cover is completely pushed in.
