Joint Hose Installation Note

1. Install the joint hose as shown in the figure below.

   Fuel tank side

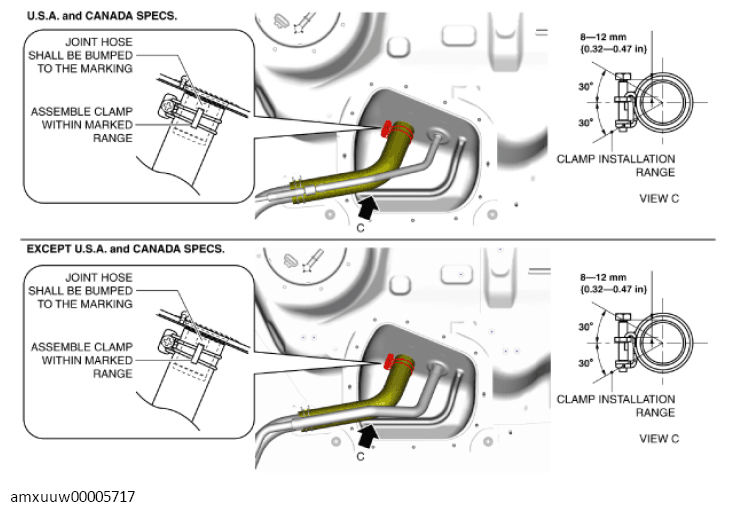

Fig 1: Installing Joint Hose (Fuel Tank Side)

Courtesy of MAZDA MOTORS CORP.

Fuel-Filler Pipe Side

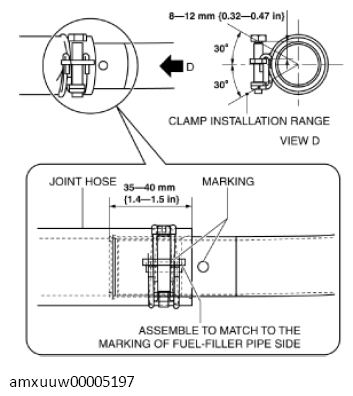

Fig 2: Assembling Match Mark Side Of Fuel-Filler Pipe Side

Courtesy of MAZDA MOTORS CORP.
