On-Board Diagnostic - SAS Control Module - Two-Step Deployment Control System
›
Foreword (SAS Control Module (Two-Step Deployment Control System))
›
Troubleshooting Procedure
Troubleshooting Procedure

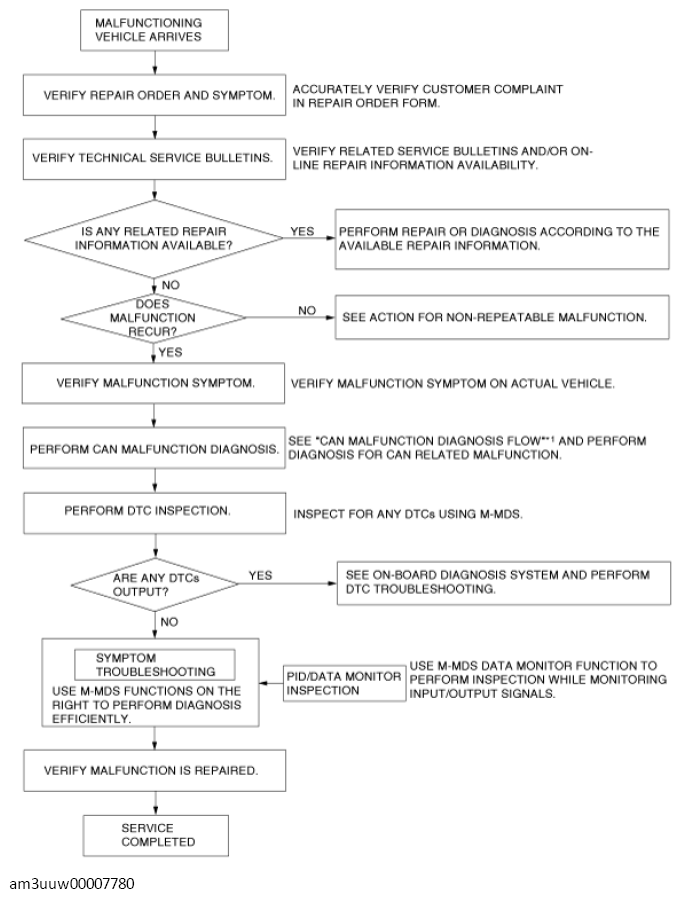

Fig 1: SAS Control Module - Troubleshooting Flowchart
Courtesy of MAZDA MOTORS CORP.
