Exhaust System Removal/Installation: 2WD: Notes

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
Remove in the order indicated in the table.
Remove the insulator. (See EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION .)
Install in the reverse order of removal.

Step 1

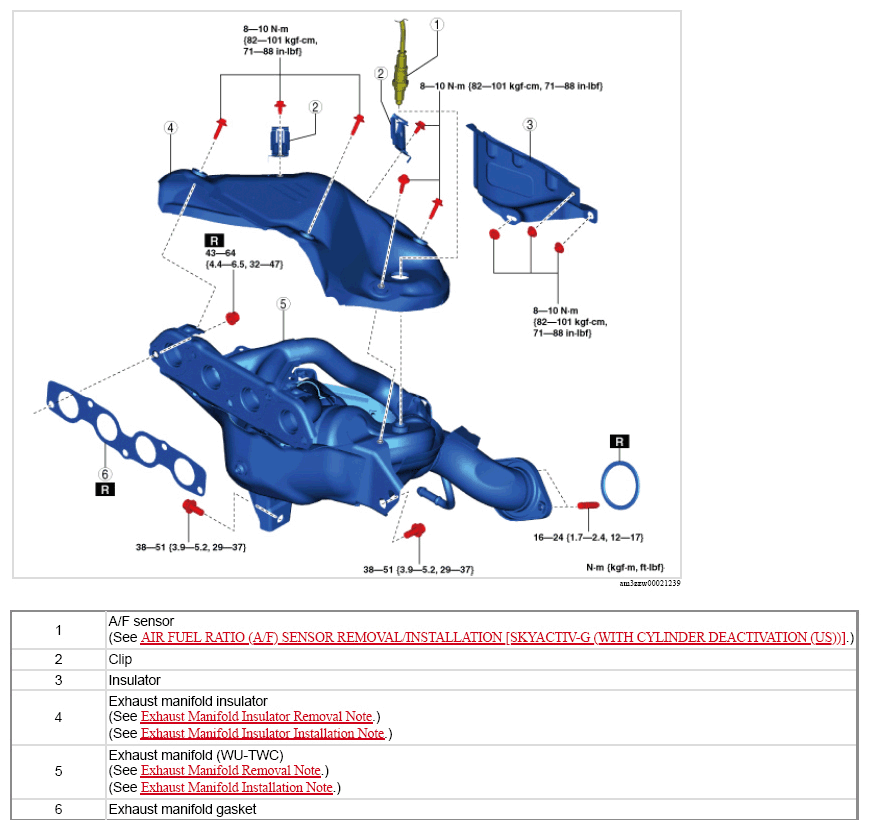

Fig 1: Exhaust System Components With Torque Specification (2WD; Step 1)

Courtesy of MAZDA MOTORS CORP.

Step 2

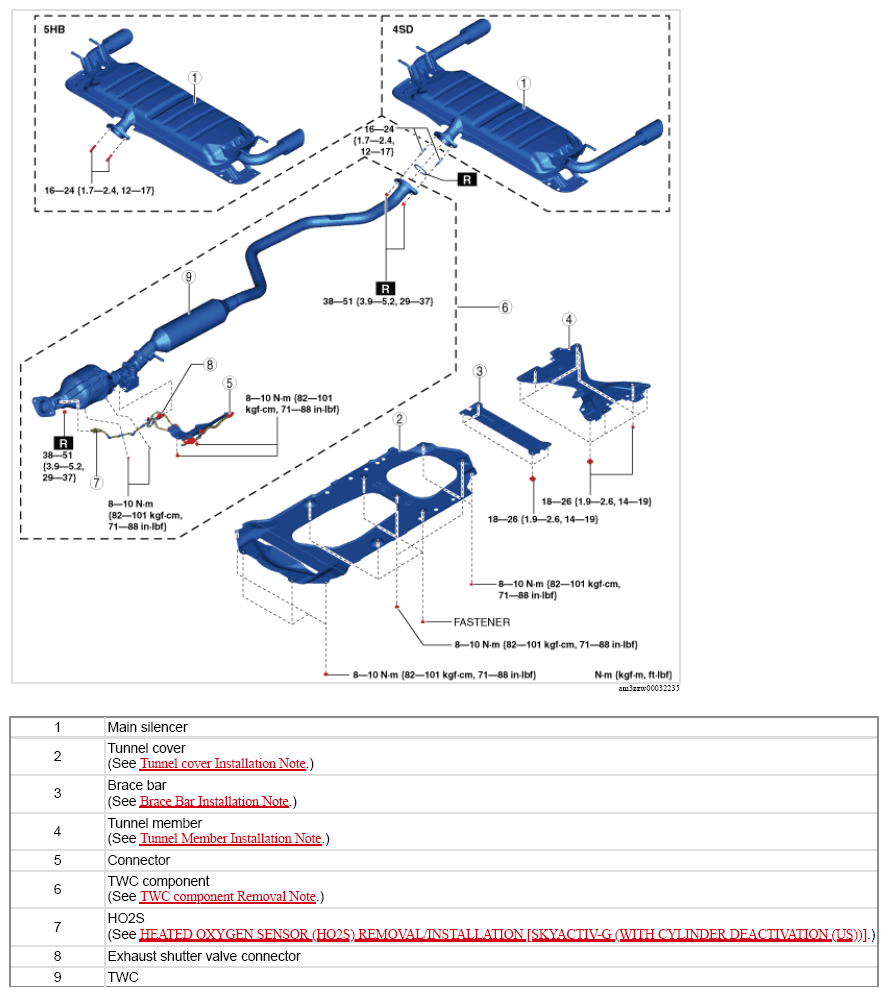

Fig 2: Exhaust System Components With Torque Specification (2WD; Step 2)

Courtesy of MAZDA MOTORS CORP.
