Throttle Body Installation Note

  1. Install the throttle body.
  2. Install the bolt shown in the figure.

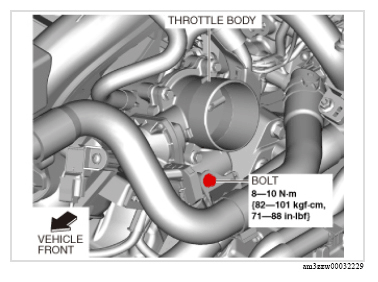

    Fig 1: Throttle Body Bolt With Torque Specification
    G13174915Courtesy of MAZDA MOTORS CORP.
