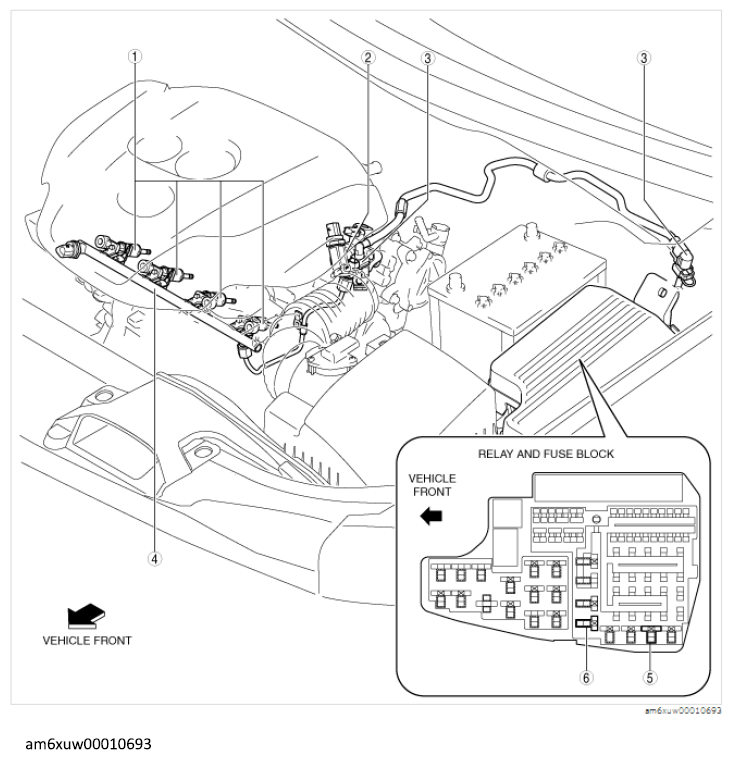

Engine Compartment Side
FUEL SYSTEM COMPONENT OPERATIONS
| Component No. | Refer to |
|---|---|
| 1 | See FUEL INJECTOR REMOVAL/INSTALLATION See FUEL INJECTOR INSPECTION |
| 2 | See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION See HIGH PRESSURE FUEL PUMP INSPECTION |
| 3 | See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION |
| 4 | See FUEL INJECTOR REMOVAL/INSTALLATION |
| 5 | See RELAY INSPECTION |
| 6 | See RELAY INSPECTION |
