Starting System Location Index

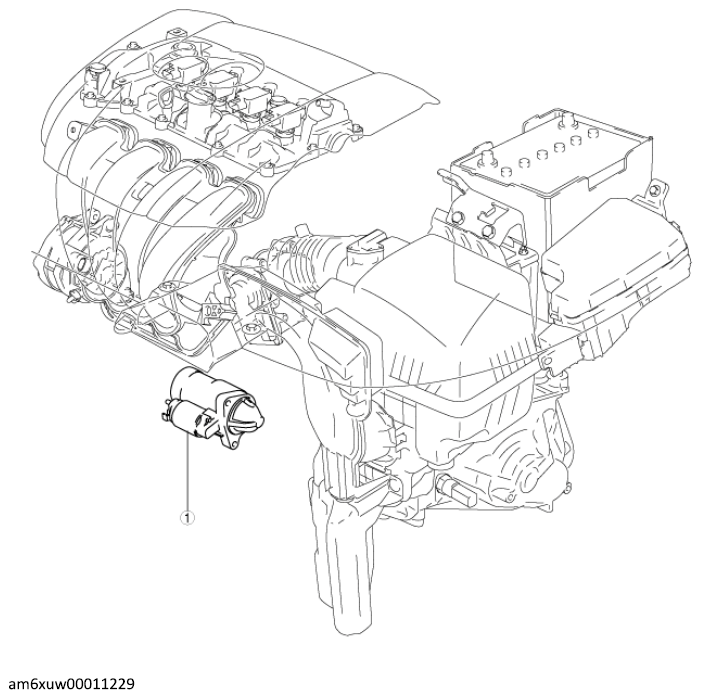

Fig 1: Starting System Location

Courtesy of MAZDA MOTORS CORP.

STARTING SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	See STARTER REMOVAL/INSTALLATION See STARTER INSPECTION See STARTER DISASSEMBLY/ASSEMBLY
