Boost Air Temperature Sensor Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
Remove the bolt.

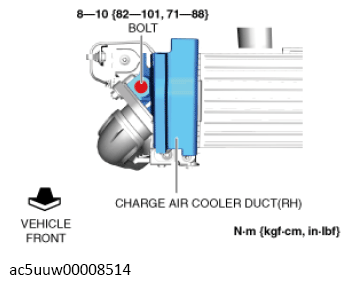

Fig 1: Charge Air Cooler Duct (RH) And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the charge air cooler duct (RH).
Disconnect the boost air temperature sensor connector.

Courtesy of MAZDA MOTORS CORP.

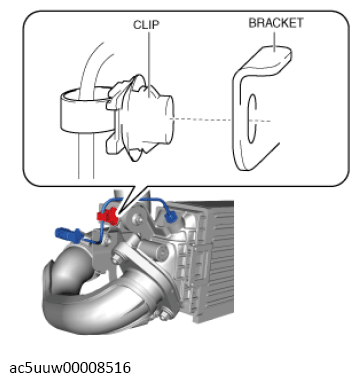

Remove the clip from the bracket.

Courtesy of MAZDA MOTORS CORP.
Remove the boost air temperature sensor.

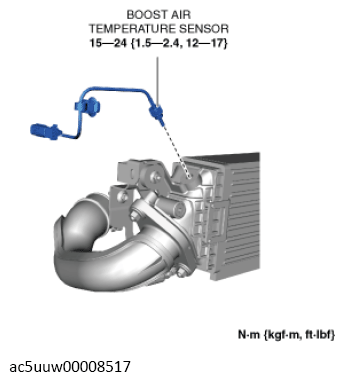

Fig 2: Boost Air Temperature Sensor Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
