EGR Temperature Sensor Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION .)

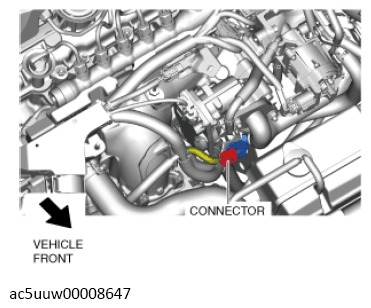

  3. Disconnect the EGR temperature sensor connector.
    G13119186Courtesy of MAZDA MOTORS CORP.

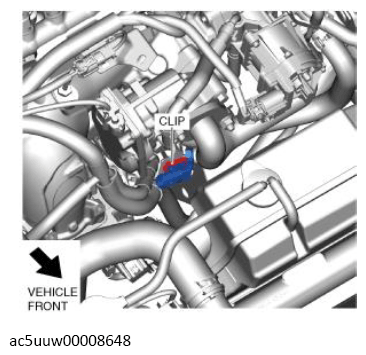

  4. Remove the clip.
    G13119187Courtesy of MAZDA MOTORS CORP.

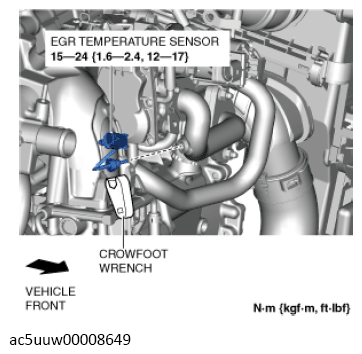

  5. Remove the EGR temperature sensor using a commercially-available crowfoot wrench.
    Fig 1: EGR Temperature Sensor Bolt With Torque Specification
    G13119188Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
