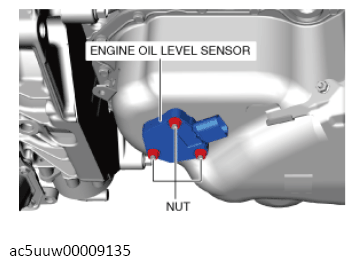

Nut Installation Note

Temporarily tighten the nuts.

Courtesy of MAZDA MOTORS CORP.

Temporary tightening torque

2.0 N.m {20 kgf.cm, 18 in.lbf}
Completely tighten the nuts.
Tightening torque

8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
