Intake Air Temperature (IAT) Sensor No. 2 Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
Remove the bolt.

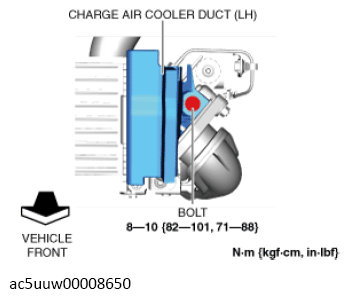

Fig 1: Charge Air Cooler Duct (LH) And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the charge air cooler duct (LH).
Disconnect the IAT sensor No. 2 connector.

Courtesy of MAZDA MOTORS CORP.

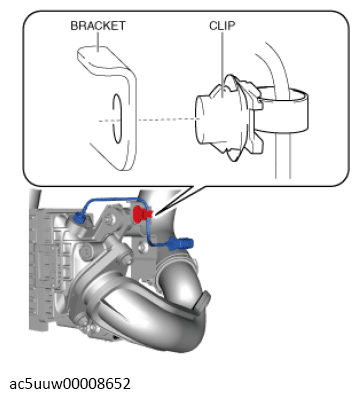

Remove the clip from the bracket.

Courtesy of MAZDA MOTORS CORP.
Remove the IAT sensor No. 2.

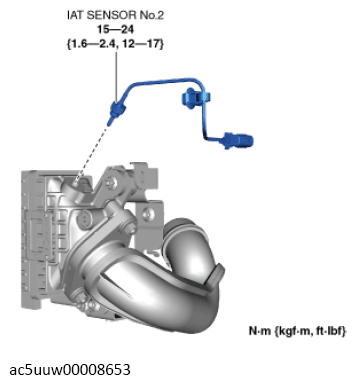

Fig 2: IAT Sensor No. 2 Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
