Intake Air Temperature (IAT) Sensor No. 3 Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION .)
Disconnect the IAT sensor No. 3 connector.
Remove clip A from the bracket.

Courtesy of MAZDA MOTORS CORP.
Remove clip B from the bracket.

Courtesy of MAZDA MOTORS CORP.

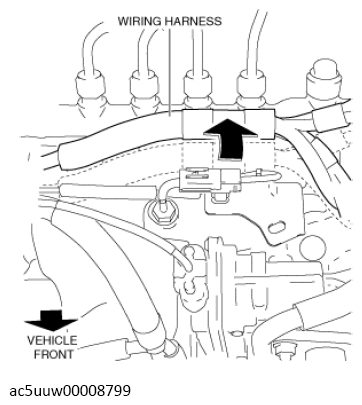

Set the wiring harness aside.

Courtesy of MAZDA MOTORS CORP.
Remove clip C from the bracket.

Courtesy of MAZDA MOTORS CORP.
Remove the IAT sensor No. 3.

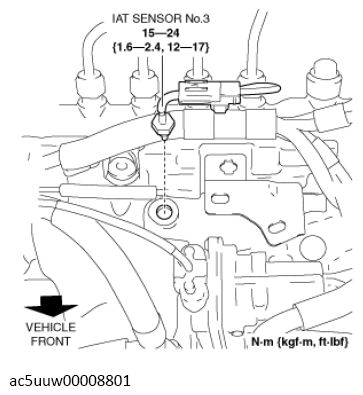

Fig 1: IAT Sensor No. 3 Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
