PCM Bracket Installation Note

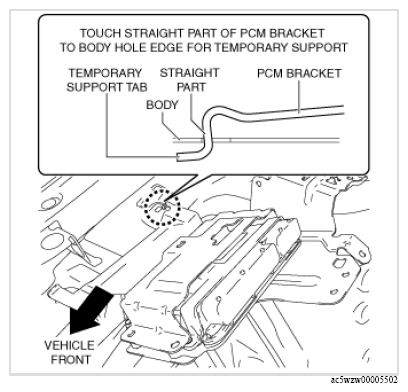

  1. Install the PCM bracket as shown in the figure.
G13119357Courtesy of MAZDA MOTORS CORP.
