Pm Sensor Removal/Installation: 2WD: Removal

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the following parts:
   1. Floor under cover (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
   2. Insulator (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
   3. Brace bar (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
   4. Tunnel member (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
3. Remove the clip.

   Courtesy of MAZDA MOTORS CORP.

4. Remove the bolts.
5. Disconnect the connector.
6. Suspend module bracket using a rope as shown in the figure.

   Courtesy of MAZDA MOTORS CORP.

7. Remove the nuts.

   Courtesy of MAZDA MOTORS CORP.

8. Disconnect the connector.
9. Remove the clip.
10. Remove the PM sensor control module.

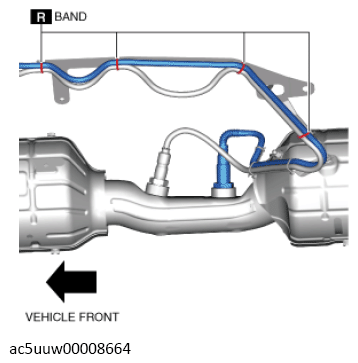

11. Cut the bands.

    Courtesy of MAZDA MOTORS CORP.

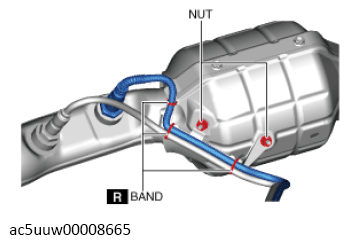

12. Remove the nuts, and remove the bracket from the SCR converter.

    Courtesy of MAZDA MOTORS CORP.

13. Cut the bands.

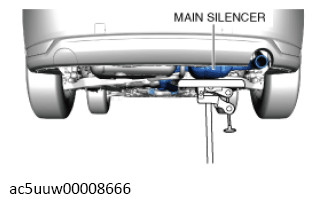

14. Support the main silencer using a transmission jack.

    Courtesy of MAZDA MOTORS CORP.

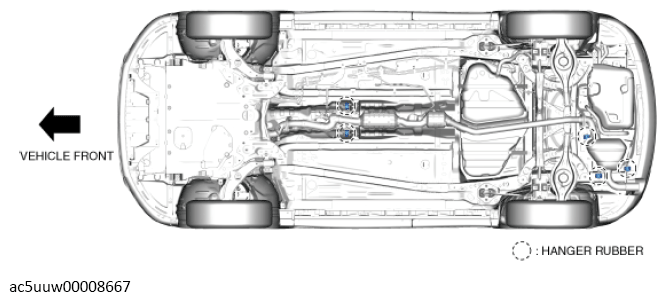

15. Remove the hanger rubber.

    Courtesy of MAZDA MOTORS CORP.

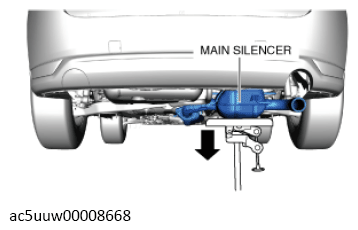

16. Lower the transmission jack slowly to a position allowing removal of the PM sensor.

    Courtesy of MAZDA MOTORS CORP.

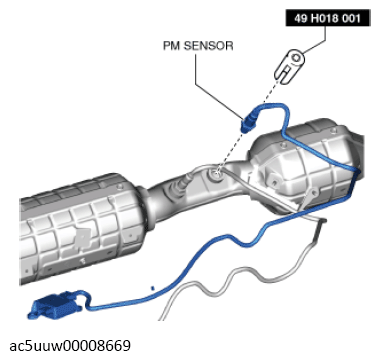

17. Remove the PM sensor using the SST.

Courtesy of MAZDA MOTORS CORP.
