Pm Sensor Removal/Installation: AWD: Removal

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the floor under cover (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)

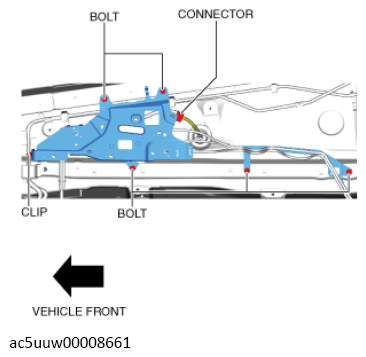

3. Remove the clip.

   Courtesy of MAZDA MOTORS CORP.

4. Remove the bolts.
5. Disconnect the connector.

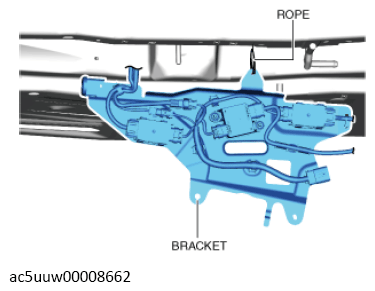

6. Suspend module bracket using a rope as shown in the figure.

   Courtesy of MAZDA MOTORS CORP.

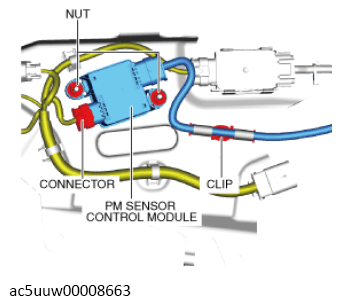

7. Remove the nuts.

   Courtesy of MAZDA MOTORS CORP.

8. Disconnect the connector.
9. Remove the clip.
10. Remove the PM sensor control module.

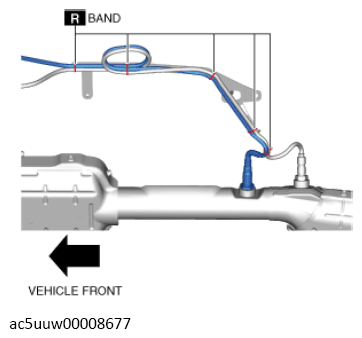

11. Cut the bands.

    Courtesy of MAZDA MOTORS CORP.

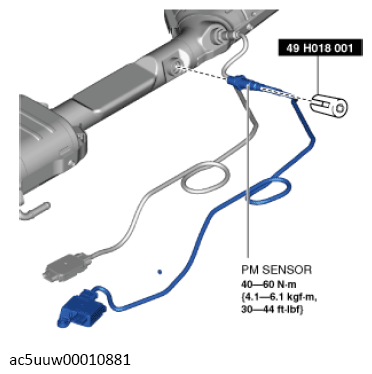

12. Remove the PM sensor using the SST.

Fig 1: PM Sensor Bolt With Torque Specification

Courtesy of MAZDA MOTORS CORP.
