Band installation note

WARNING: This page is about a different variant/trim than selected.

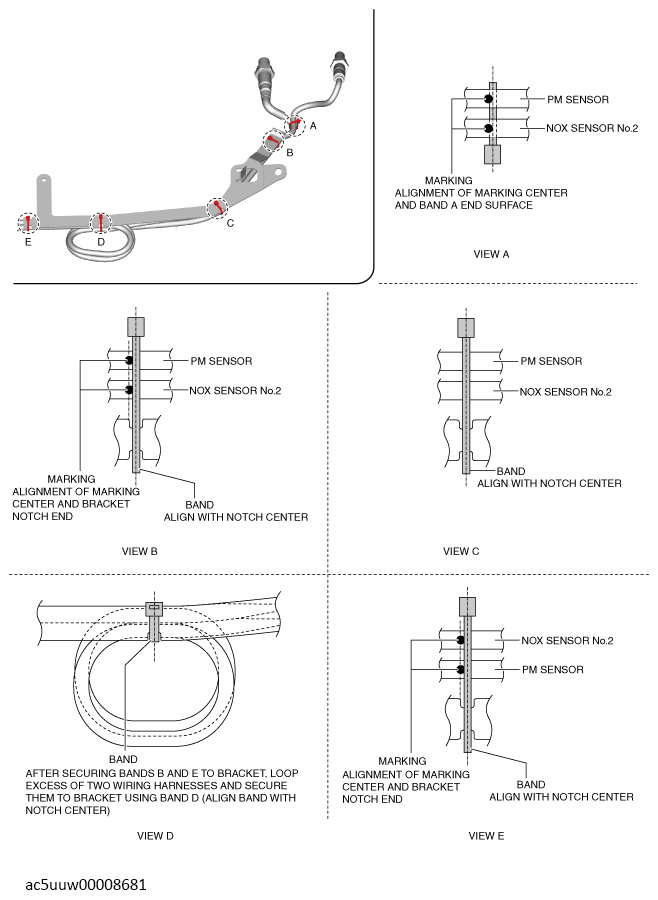

  1. Install bands as shown in the figure.
G13119390Courtesy of MAZDA MOTORS CORP.
