Function Explanation (DTC Detection Outline)

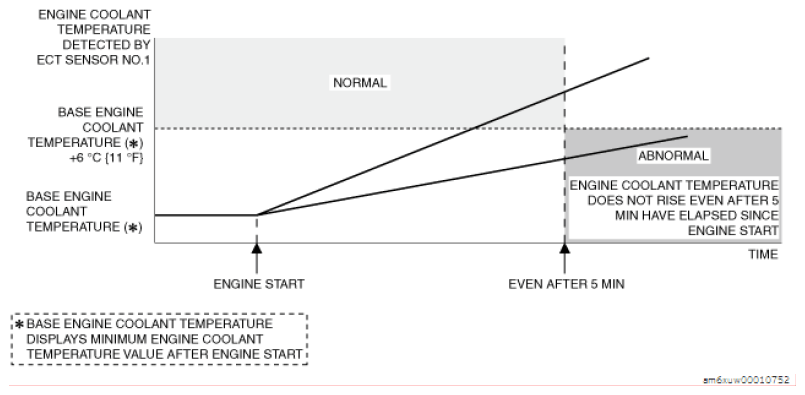

• If the engine coolant temperature detected by the ECT sensor is not rising 6°C {11°F} or more during a 5 min period after the engine is started, the PCM determines an ECT sensor malfunction and stores a DTC.

Courtesy of MAZDA MOTORS CORP.
