Fuel Tank Removal/Installation: 2WD

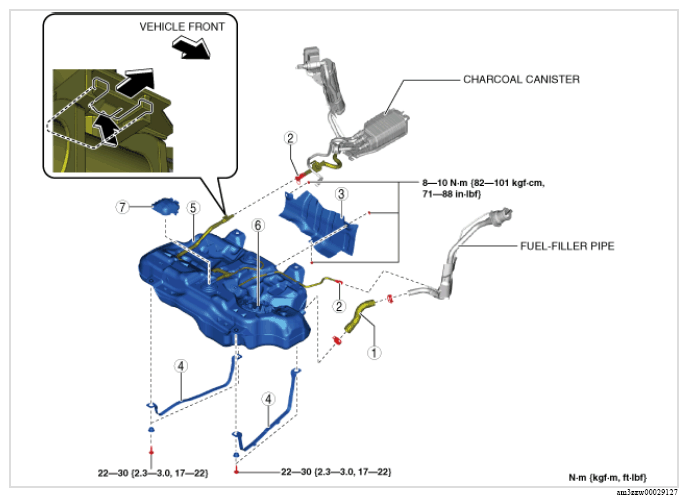

Fig 1: Fuel Tank Components With Torque Specification (2WD)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Joint hose (See Joint Hose Installation Note .)
2	Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION .)
3	Fuel tank insulator
4	Fuel tank strap
5	Fuel tank (See Fuel Tank Removal Note (2WD) .)
6	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION .)
7	Cover
