On-Board Diagnostics - Position Memory Control Module
›
On-Board Diagnostic Wiring Diagram (Position Memory Control Module)
On-Board Diagnostic Wiring Diagram (Position Memory Control Module)

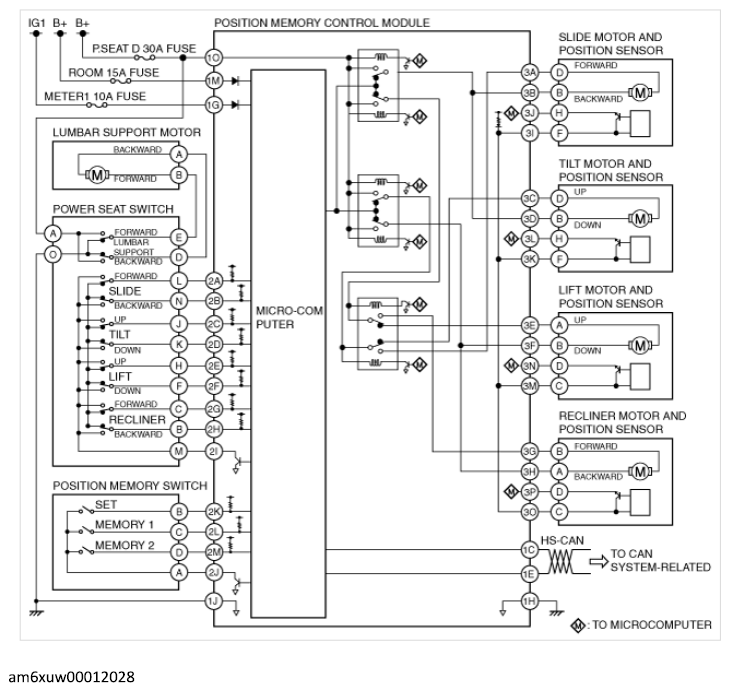

Fig 1: Position Memory Control Module On-Board Diagnostic Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
