Front Inner Handle

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)

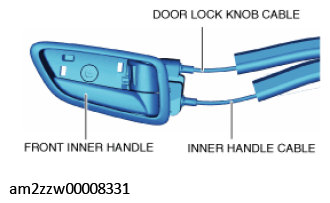

  4. Disconnect the door lock knob cable and the inner handle cable from the front inner handle.
    G11472686Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
