Liftgate Latch Switch Inspection

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
3. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
4. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
Liftgate latch and lock actuator. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)

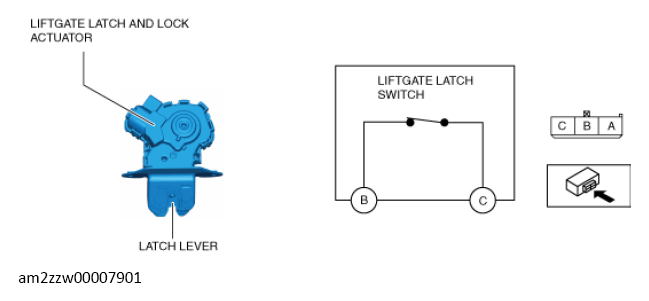

Verify that the continuity is as indicated in the table.

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the liftgate latch and lock actuator. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
NOTE:

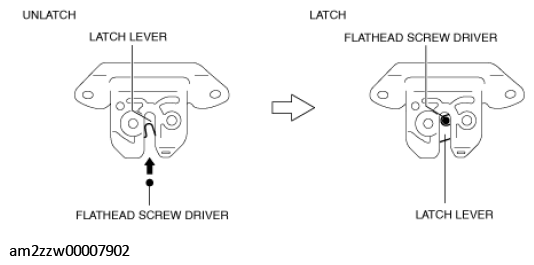

- When inspecting the latch condition of the liftgate latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.
Courtesy of MAZDA MOTORS CORP.
