Liftgate Lock Striker Removal/Installation: Notes

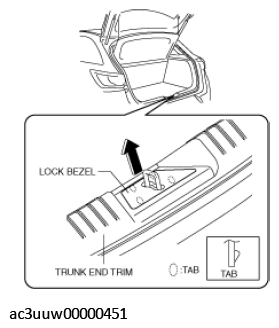

Pull the lock bezel in the direction of the arrow shown in the figure and detach the lock bezel tabs from the trunk end trim.

Courtesy of MAZDA MOTORS CORP.
Remove the bolts.

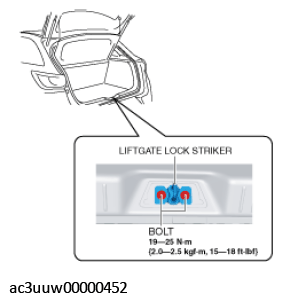

Fig 1: Liftgate Lock Striker And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the liftgate lock striker. (See Liftgate Lock Striker Installation Note .)
Install in the reverse order of removal.
