No. 1 Engine Mount (2WD): Notes

1. Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

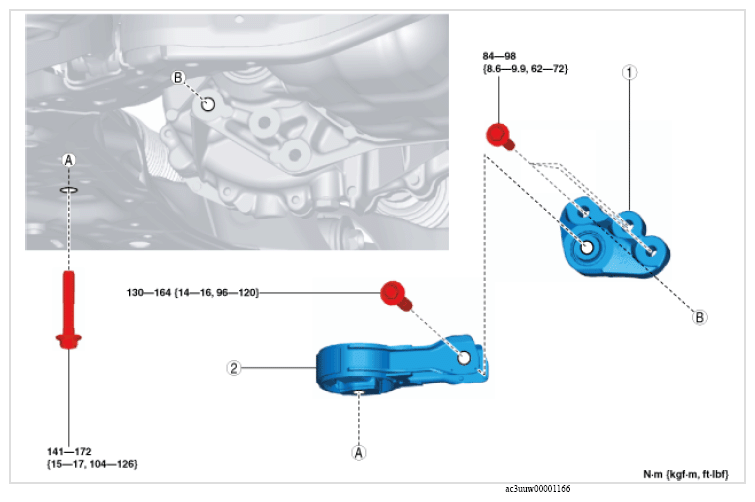

Fig 1: No. 1 Engine Mount (2WD) Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	No. 1 engine mount bracket (See No. 1 engine mount installation note (2WD) .)
2	No. 1 engine mount rubber (See No. 1 engine mount installation note (2WD) .)
