Vacuum Hose Installation Note
Vacuum Hose Installation Note

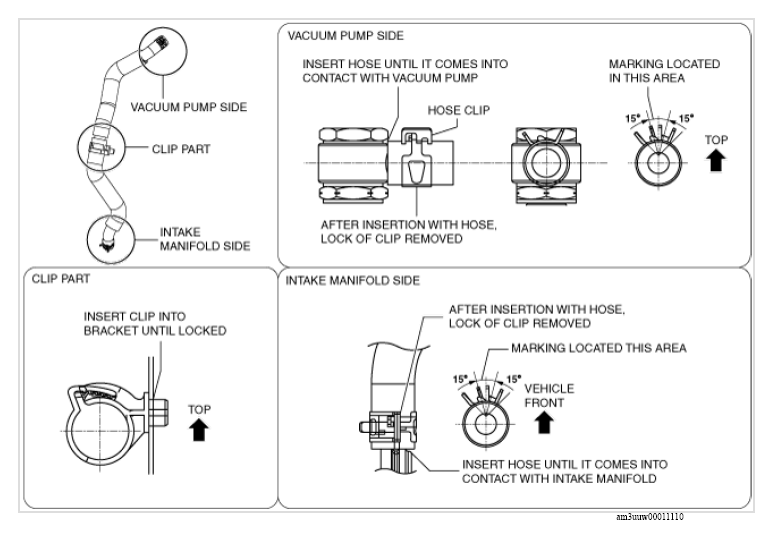

Install the vacuum hose as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
