Ventilation Hose Installation Note

  1. Install the ventilation hose as shown in the figure.

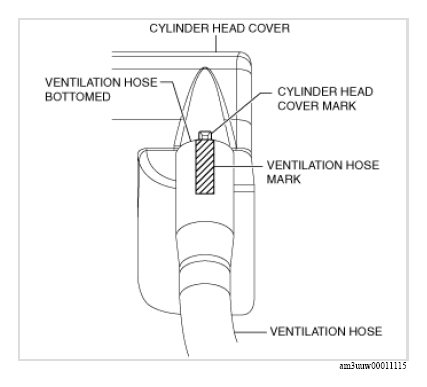

Cylinder head cover side

G13149387Courtesy of MAZDA MOTORS CORP.

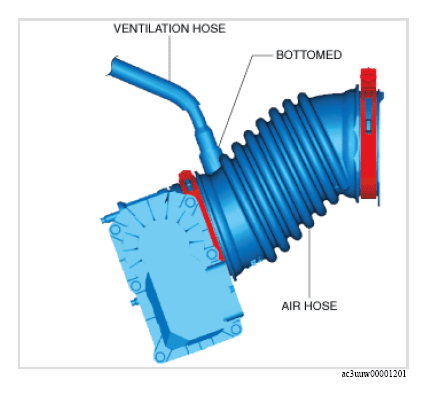

Air hose side

G13149388Courtesy of MAZDA MOTORS CORP.
