Radiator Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

To prevent damage to the radiator core, protect it by covering the radiator surface with cardboard.
Lift the radiator and remove it from the radiator installation holes on the shroud panel.
Move the radiator and condenser to the engine side.

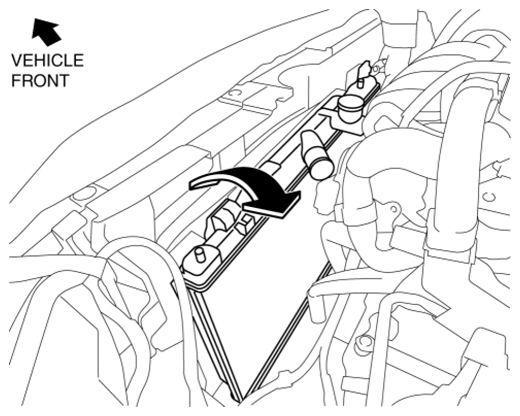

Fig 1: Moving Radiator And Condenser To Engine Side
Courtesy of MAZDA MOTORS CORP.

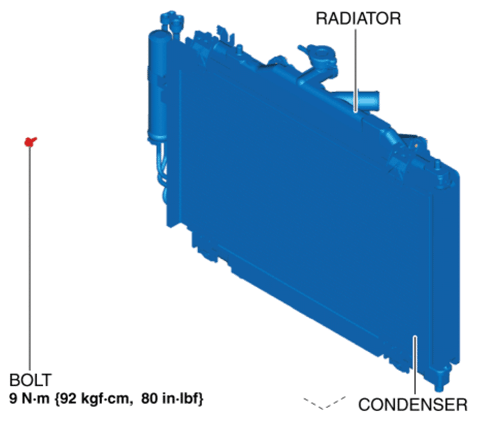

Remove the four bolts securing the condenser to the radiator.

Fig 2: Removing Bolts Securing Condenser To Radiator
Courtesy of MAZDA MOTORS CORP.
Remove the radiator from above the engine compartment.
