Front Heat Duct Removal/Installation: Driver-Side

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driver-side side wall. (See SIDE WALL REMOVAL/INSTALLATION .)
Detach the tab.

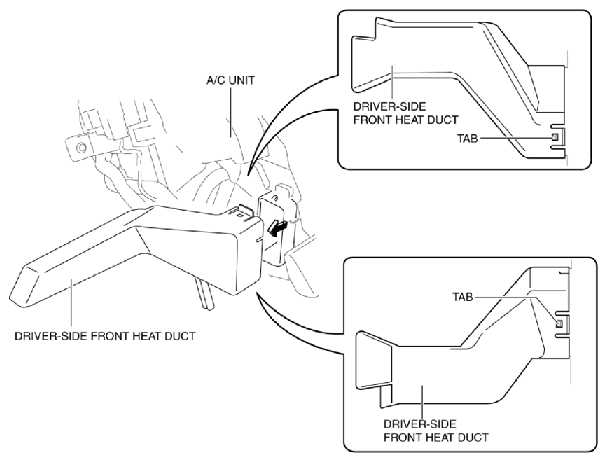

Fig 1: Detaching Tab (Driver-Side)
Courtesy of MAZDA MOTORS CORP.
Remove the driver-side front heat duct.
Install in the reverse order of removal.
