Engine Disassembly/Assembly: Notes

Special Service Tool (SST)

  1. Mazda SST number
  2. Global SST number
  1. 49 UN30 3050
  2. 303-050
Engine lifting bracket
G13556415Courtesy of MAZDA MOTORS CORP.
  1. 49 L017 5A0
  2. -
Support hanger
G13556416Courtesy of MAZDA MOTORS CORP.

Replacement Part

Gasket
Quantity: 1
Location of use: Oil filter body
CAUTION:
  • When the transaxle is installed, do not suspend the engine. Otherwise, the SST installation area of the cylinder head may be damaged due to excess weight. Only suspend the engine after separating the engine and transaxle.
  • Applying excessive force (force of 100 N {10.2 kgf, 22.5 lbf} or more) to the electric variable valve timing motor/driver may cause a malfunction. When servicing, be careful not to apply excessive force to the electric variable valve timing motor/driver using other parts or tools.
  1. To enable to install the SST, disconnect the clip shown in the illustration and set the wiring harness aside.
    G13556417Courtesy of MAZDA MOTORS CORP.

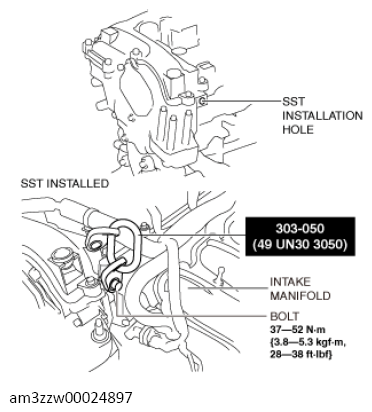

  2. Install the SST and the following bolt to the position shown in the illustration. Engine front side
    Fig 1: Intake Manifold Bolt With Torque Specification (Engine Front Side)
    G13556418Courtesy of MAZDA MOTORS CORP.

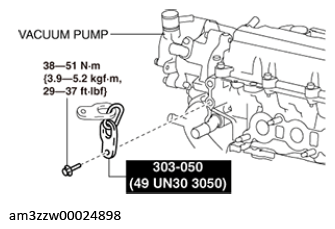

    Engine rear side

    Fig 2: Vacuum Pump Bolt With Torque Specification (Engine Rear Side)
    G13174222Courtesy of MAZDA MOTORS CORP.

    Bolt:

    part number 99794 1025 or an M10 x 1.25, length 25 mm {0.98 in}

  3. Engage the hooks of the SST (49 L017 5A0) to the SST (49 UN30 3050).
    G13174223Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Do not lift up the engine.

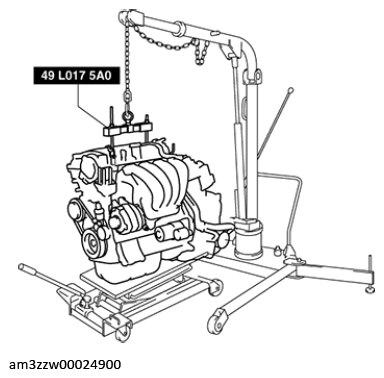

  4. To ensure the safety of the work (control engine and transaxle sway), set a hoist as shown in the illustration.
    G13174224Courtesy of MAZDA MOTORS CORP.

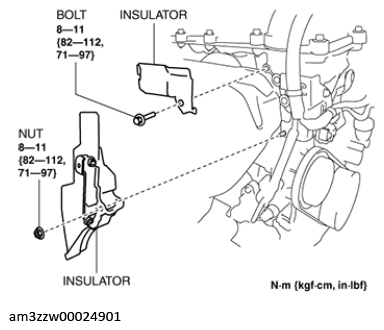

  5. Remove the insulator shown in the illustration.
    Fig 3: Insulator, Nut And Bolt With Torque Specification
    G13174225Courtesy of MAZDA MOTORS CORP.
  6. Remove the exhaust system. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
  7. Remove the exhaust manifold bracket No. 1. (See EXHAUST MANIFOLD BRACKET NO. 1 REMOVAL NOTE .) (See OIL COOLER WATER PIPE COMPONENT INSTALLATION NOTE (SKYACTIV-G 2.0) .)
  8. Remove the bracket No. 1 (drive shaft bracket). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION [(US)] .)
  9. Remove the starter. (See STARTER REMOVAL/INSTALLATION .)
  10. Remove the coolant control valve. (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION .)
  11. Fix the drive plate using the crankshaft pulley lock bolt. (ATX)
  12. Remove the torque converter installation nut from the starter installation hole. (ATX) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION (ET6A-EL) (US) .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION (ET6AX-EL) (US) .)
  13. Disconnect the engine and transaxle, and lower only the engine from the engine lifter.(See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION (ET6A-EL) (US) .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION (ET6AX-EL) (US) .)
  14. Remove the generator. (See GENERATOR REMOVAL/INSTALLATION .)
  15. Remove the intake-air system. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  16. Remove the oil separator. (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION .)
  17. Remove the knock sensor (KS). (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION .)
  18. Remove the fuel injectors. (See FUEL INJECTOR REMOVAL/INSTALLATION .)
  19. Remove the camshaft position (CMP) sensor. (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION .)
  20. Remove the vacuum pump. (See VACUUM PUMP REMOVAL/INSTALLATION .)
  21. Remove the high pressure fuel pump and rear housing. (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION .)
  22. Remove the electric variable valve timing motor/driver. (See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER REMOVAL/INSTALLATION .)
  23. Remove the oil filter. (See OIL FILTER REPLACEMENT .)
  24. Remove the oil cooler. (If equipped) (See OIL COOLER REMOVAL/INSTALLATION .)
  25. Remove the engine oil solenoid valve. (See ENGINE OIL SOLENOID VALVE REMOVAL/INSTALLATION .)
  26. Remove the engine oil temperature sensor/engine oil pressure sensor. (See ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR REMOVAL/INSTALLATION .)
  27. Remove the crankshaft position (CKP) sensor. (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION .)
  28. Remove the dipstick.
  29. Remove the ignition coil/ion sensors. (See IGNITION COIL/ION SENSOR REMOVAL/INSTALLATION .)

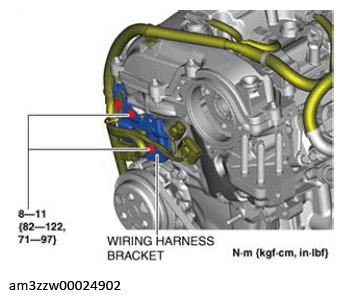

  30. Remove the wiring harness bracket shown in the illustration.
    Fig 4: Wiring Harness Bracket Bolts With Torque Specification
    G13174226Courtesy of MAZDA MOTORS CORP.
  31. Remove the wiring harness bracket and wiring harness protector shown in the illustration.

    Without oil cooler

    Fig 5: Wiring Harness Bracket And Protector Bolts With Torque Specification (Without Oil Cooler)
    G12228326Courtesy of MAZDA MOTORS CORP.

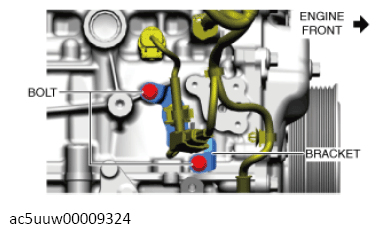

    SKYACTIV-G 2.0 (With oil cooler)

    Fig 6: Bracket Bolts With Torque Specification (Skyactiv-G 2.0, With Oil Cooler)
    G13556425Courtesy of MAZDA MOTORS CORP.

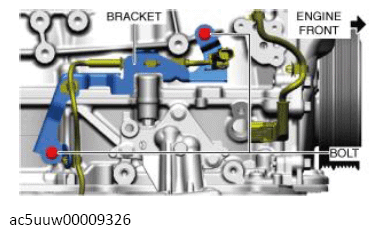

    SKYACTIV-G 2.5 (With oil cooler)

    Fig 7: Bracket Bolts With Torque Specification (Skyactiv-G 2.5, With Oil Cooler)
    G13556426Courtesy of MAZDA MOTORS CORP.
  32. Remove the emission harness.
  33. Remove the water pump drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)
  34. Remove the water inlet pipe and flange component. (See CYLINDER HEAD GASKET REPLACEMENT .)
  35. Remove the water pump. (See WATER PUMP REMOVAL/INSTALLATION .)
  36. Remove the clutch cover and clutch disc. (MTX) (See appropriate service information.)
  37. Remove the short cord of the engine oil level sensor. (See ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION .)
  38. Remove in the order indicated in the table
  39. Assemble in the reverse order of disassembly.

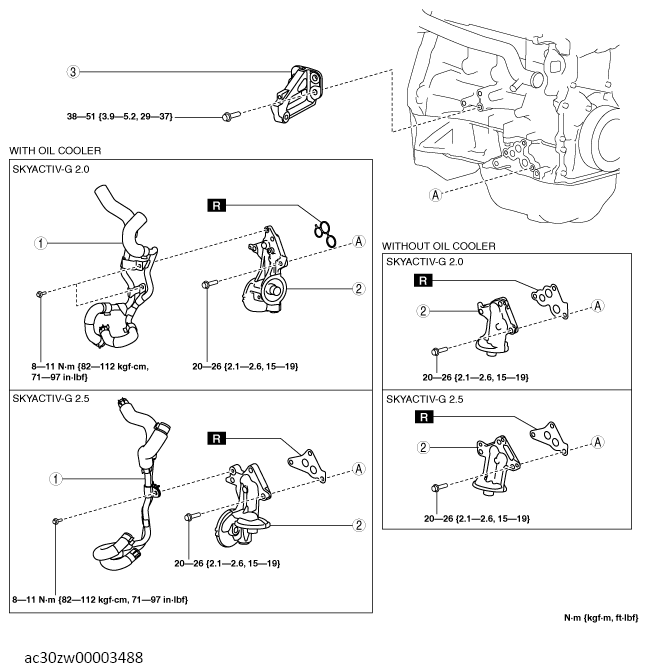

    Exhaust side

Fig 8: Exhaust Manifold Bracket Components With Torque Specification
G13556427Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Oil cooler water pipe component (With oil cooler)
(See EXHAUST MANIFOLD BRACKET NO. 1 REMOVAL NOTE .)
2 Oil filter body
(See OIL FILTER BODY INSTALLATION NOTE .)
3 Exhaust manifold bracket
(See EXHAUST MANIFOLD BRACKET NO. 1 REMOVAL NOTE .)
