Function Explanation (DTC Detection Outline)

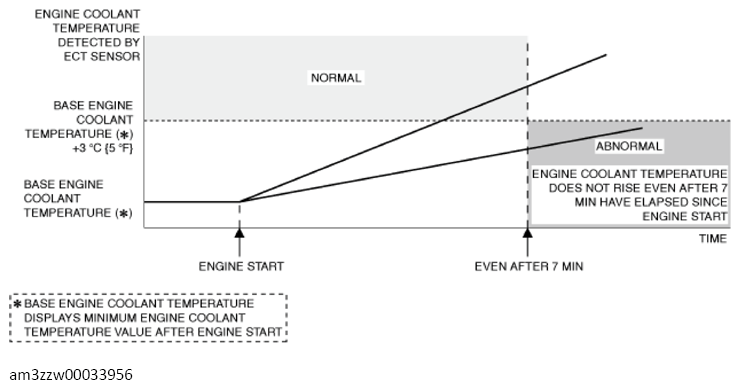

• If the engine coolant temperature detected by the ECT sensor No. 2 is not rising3°C {5°F} or more during a 7 min period after the engine is started, the PCM determines an ECT sensor No. 2 malfunction and stores a DTC.

Courtesy of MAZDA MOTORS CORP.
