Fuel Tank Removal/Installation: Notes

WARNING:
  • Highly pressurized fuel may spray out if the fuel line is cut. Due to the following dangers occurring with a fuel spray, always complete the "FUEL LINE SAFETY PROCEDURE " to prevent the fuel from spraying.
    • Fuel may cause irritation if it comes in contact with skin and eyes.
    • If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities.
  • A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before performing work on the fuel system, discharge static electricity by touching the vehicle body.
CAUTION:
  • Disconnecting/connecting the quick release connector without cleaning it may cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting using a cloth or soft brush, and make sure that it is free of foreign material.
  1. Level the vehicle.
  2. Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
  3. Drain the fuel. (See FUEL DRAINING PROCEDURE .)
  4. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)

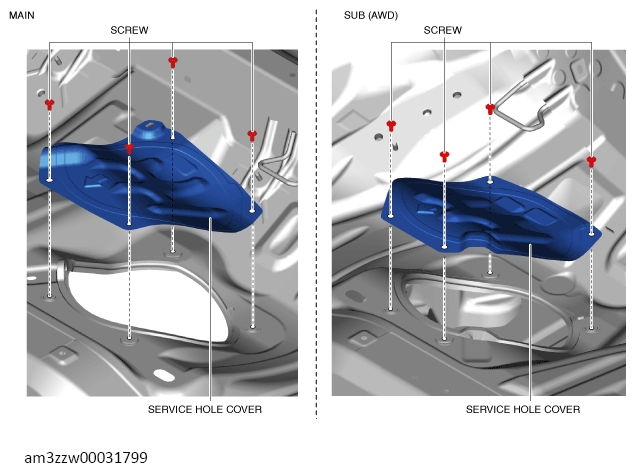

  5. Remove the service hole cover.
    G13557295Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the following parts:
  7. Remove the floor under cover No. 1 (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  8. Remove the floor under cover No. 2. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  9. Remove the TWC and HO2S as a single unit. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
  10. Remove the propeller shaft. (AWD) (See PROPELLER SHAFT REMOVAL/INSTALLATION (US) .)
  11. Remove the insulator (middle). (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
  12. Remove in the order indicated in the table.
  13. Install in the reverse order of removal.
  14. Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)

    2WD

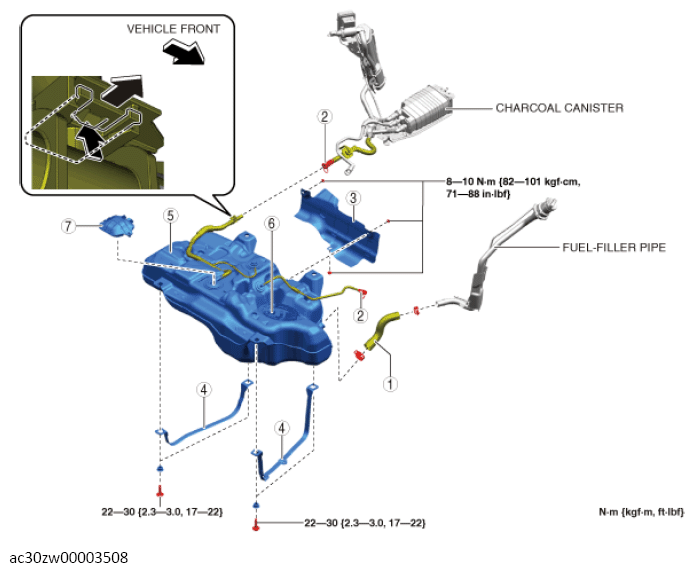

    Fig 1: Fuel Tank Components With Torque Specification (2WD)
    G13557296Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Joint hose
    (See JOINT HOSE INSTALLATION NOTE .)
    2 Quick release connector
    (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION .)
    3 Fuel tank insulator
    4 Fuel tank strap
    5 Fuel tank
    (See FUEL TANK REMOVAL NOTE .)
    6 Fuel pump unit
    (See FUEL PUMP UNIT REMOVAL/INSTALLATION .)
    7 Cover

    AWD

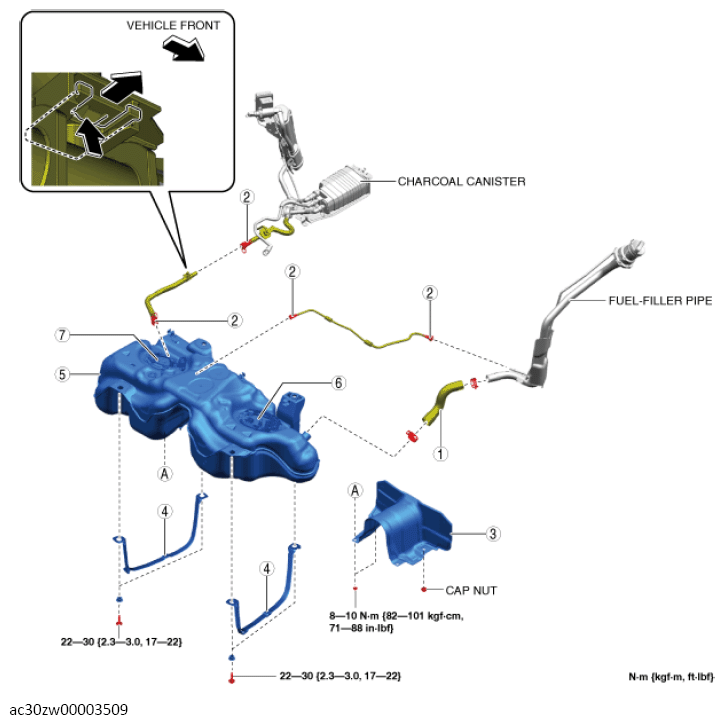

    Fig 2: Fuel Tank Components With Torque Specification (AWD)
    G13557297Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Joint hose
    (See JOINT HOSE INSTALLATION NOTE .)
    2 Quick release connector
    (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION .)
    3 Fuel tank insulator
    4 Fuel tank strap
    5 Fuel tank
    (See FUEL TANK REMOVAL NOTE .)
    6 Fuel pump unit
    (See FUEL PUMP UNIT REMOVAL/INSTALLATION .)
    7 Fuel gauge sender unit
    (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION (US) .)
