Set Plate Component Removal Note

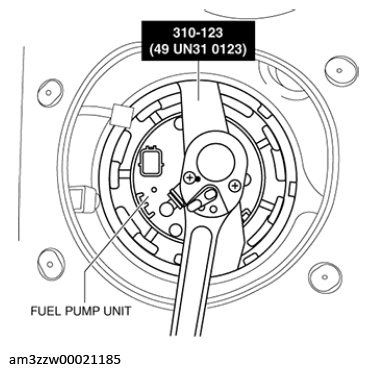

  1. Install the SST shown in the illustration.
    G13174973Courtesy of MAZDA MOTORS CORP.
  2. Remove the set plate component using the SST.
