Electrical System (Us): Fuse: Replacement

When replacing a fuse, be sure to replace it with one of the same capacity. If a fuse malfunctions again, the circuit probably has a short and the wiring should be inspected.
Be sure the negative battery terminal is disconnected before replacing a main fuse.
SKYACTIV-G

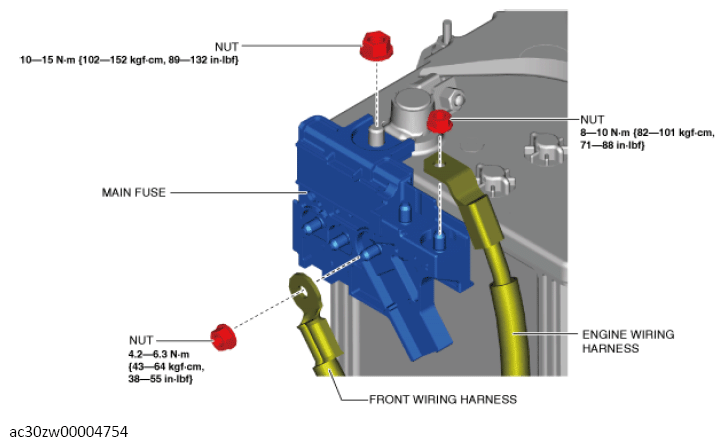

Fig 1: Main Fuse, Front - Engine Wiring Harness And Nuts With Torque Specification (SKYACTIV-G)
Courtesy of MAZDA MOTORS CORP.

SKYACTIV-G 2.5T

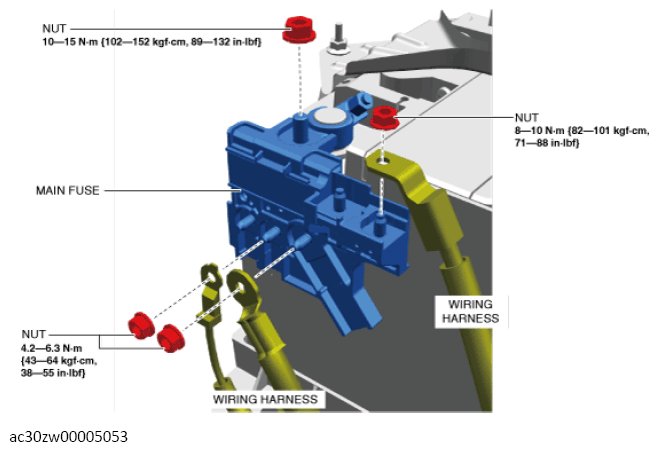

Fig 2: Main Fuse, Wiring Harness And Nuts With Torque Specification (SKYACTIV-G 2.5T)
Courtesy of MAZDA MOTORS CORP.
When replacing a pullout fuse, use the fuse puller.

Courtesy of MAZDA MOTORS CORP.
