Generator Disassembly/Assembly (VIN M) (Us)

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

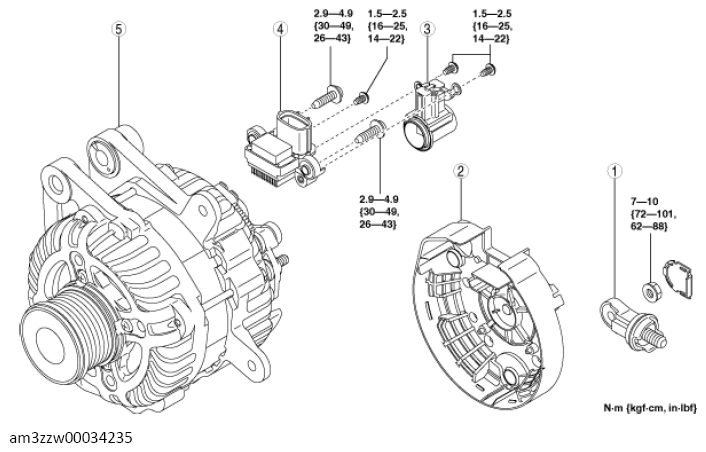

Fig 1: Generator Components With Torque Specification (SKYACTIV-G, With Cylinder Deactivation And US)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Terminal B component
2	Rear cover
3	Brush holder
4	Regulator assy
5	Generator
