Clip Replacement Note

NOTE:
  • If the clip is damaged, replace it using the following procedure.

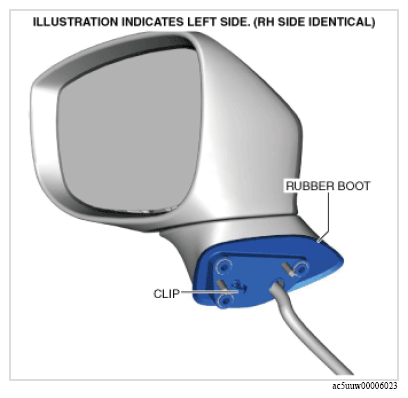

  1. Partially peel back the rubber boot.
    G13114249Courtesy of MAZDA MOTORS CORP.

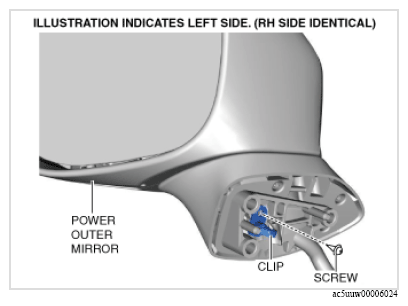

  2. Remove the screw.
    G13114250Courtesy of MAZDA MOTORS CORP.
  3. Remove the clip.
  4. Install a new clip using the following procedure.
