DTC U0401-00: Abnormal Message From Pcm: Notes
DTC U0401:00 (DYNAMIC STABILITY CONTROL) DETECTION CONDITION AND POSSIBLE CAUSE
| DTC |
U0401:00 |
Abnormal message from PCM |
| DETECTION CONDITION |
- Correct data cannot be received from PCM
|
| FAIL-SAFE FUNCTION |
Refer to "DTC Table" and "Fail-safe Function Malfunction Contents". (See DTC TABLE .) |
| POSSIBLE CAUSE |
- DTCs are stored in the PCM
- DTCs are stored in the TCM

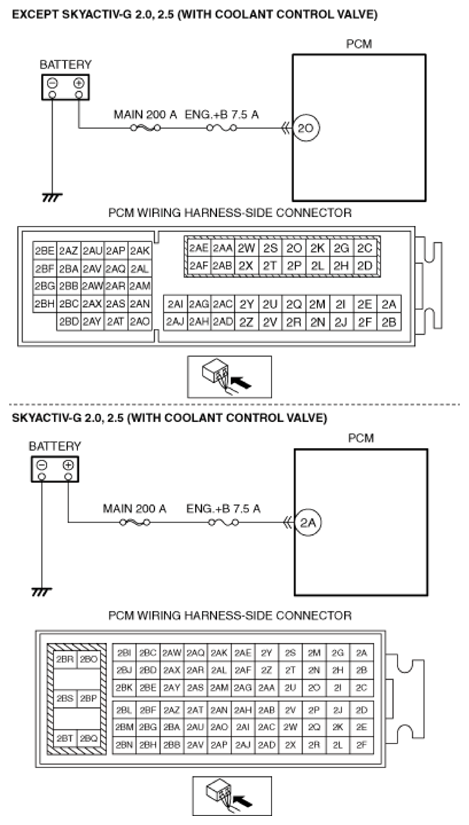

- Short to ground or open circuit in backup voltage circuit:
EXCEPT SKYACTIV-G 2.0, 2.5 (WITH COOLANT CONTROL VALVE)
- Short to ground in wiring harness between MAIN 200 A fuse and PCM terminal 2O
- MAIN 200 A fuse and/or ENG.+B 7.5 A fuse malfunction
- Open circuit in wiring harness between battery positive terminal and PCM terminal 2O
SKYACTIV-G 2.0, 2.5 (WITH COOLANT CONTROL VALVE)
- Short to ground in wiring harness between MAIN 200 A fuse and PCM terminal 2A
- MAIN 200 A fuse and/or ENG.+B 7.5 A fuse malfunction
- Open circuit in wiring harness between battery positive terminal and PCM terminal 2A
- PCM malfunction
- TCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
