Negative Battery Terminal Connection Note
Negative Battery Terminal Connection Note

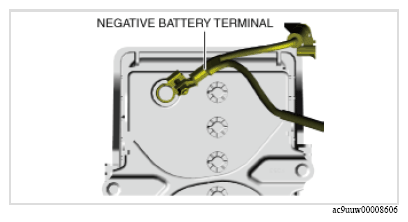

Connect the negative battery terminal as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
