Master Cylinder Removal/Installation: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING .)

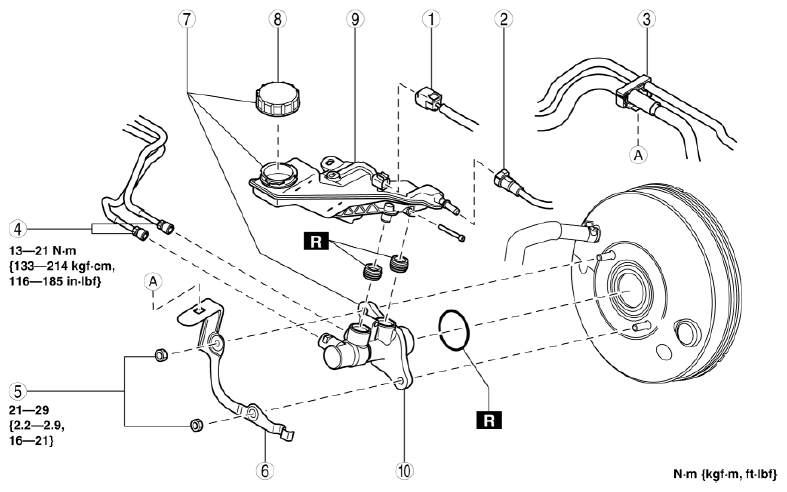

COMPONENT DESCRIPTION
| 1 | Brake fluid level sensor connector |
| 2 | Clutch reserve hose (MTX) (See Clutch Reserve Hose Removal Note (MTX) .) (See Clutch Reserve Hose Installation Note (MTX) .) |
| 3 | Hose holder |
| 4 | Brake pipe |
| 5 | Nut |
| 6 | Bracket |
| 7 | Master cylinder |
| 8 | Cap |
| 9 | Brake fluid reserve tank |
| 10 | Cylinder component |
