Partition Board Removal/Installation
WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

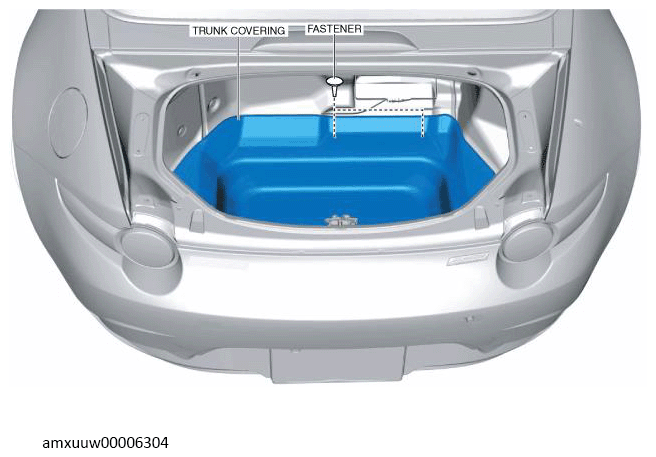

- Remove the fasteners.
 Courtesy of MAZDA MOTORS CORP.
|
- Partially peel back the front side of the trunk covering.

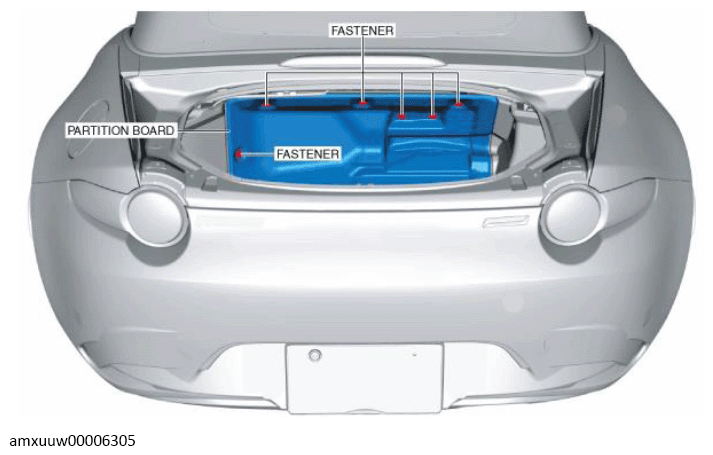

- Remove the fasteners.
 Courtesy of MAZDA MOTORS CORP.
|
- Remove the partition board.
- Install in the reverse order of removal.
