Center Display Disassembly/Assembly
WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

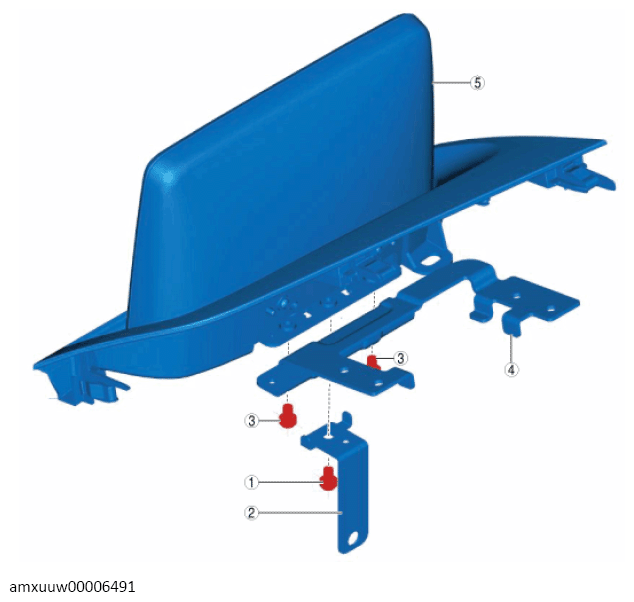

- Disassemble in the order indicated in the table.
 Courtesy of MAZDA MOTORS CORP.
|
COMPONENT DESCRIPTION
| 1 |
Screw A |
| 2 |
Bracket A |
| 3 |
Screw B |
| 4 |
Bracket B |
| 5 |
Center display |
- Assemble in the reverse order of disassembly.
