Condenser Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

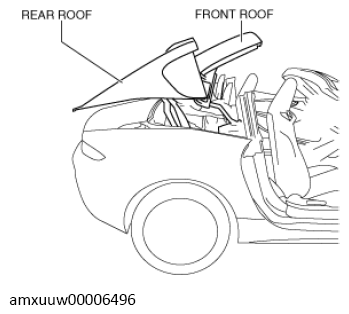

Using the retractable hardtop switch, keep the front roof half-open. (retractable hardtop)

Courtesy of MAZDA MOTORS CORP.
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the wind blocker. (See WIND BLOCKER REMOVAL/INSTALLATION .)
Partially peel back the side shelf (LH) and rear package trim to a position where the condenser is visible. (See SIDE SHELF REMOVAL/INSTALLATION .) (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
Disconnect the connector.

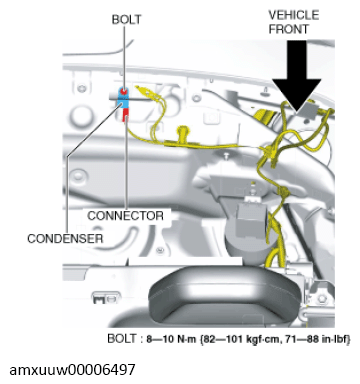

Fig 1: Condenser, Connector And Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the bolt.
Remove the condenser.
Install in the reverse order of removal.
