Connectivity Master Unit (CMU) Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

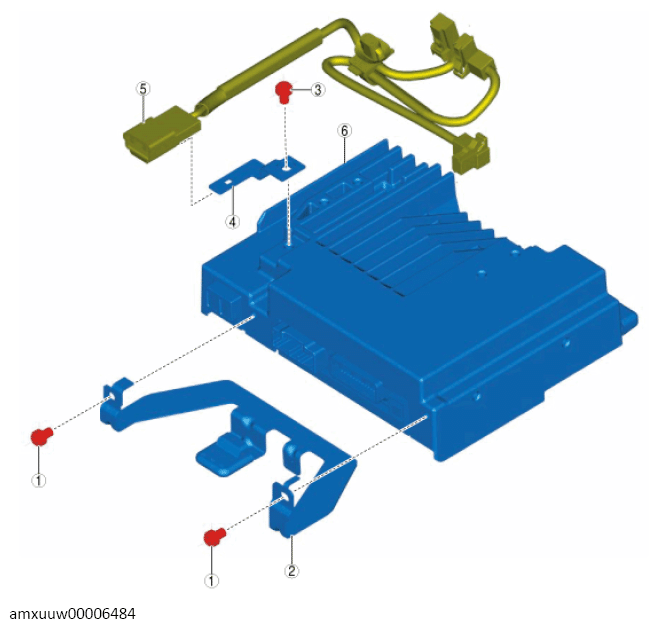

Disassemble in the order indicated in the table.

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Screw A
2	Bracket A
3	Screw B
4	Bracket B
5	Short-cord (See Short-cord Assembly Note .)
6	CMU

Assemble in the reverse order of disassembly.
