Back-Up Light Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the rear splash shield. (See REAR SPLASH SHIELD REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

    Back-up light (LH)

    G11275377Courtesy of MAZDA MOTORS CORP.

    Back-up light (RH)

    G11275378Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.
  5. While sliding clip A in the direction of arrow (1) shown in the figure, pull clip A in the direction of arrow (2) to detach it from the back-up light.
  6. While pressing the clip B tabs in the direction of arrows (1) shown in the figure, press the clip B in the direction of arrow (2) to detach the clip B tabs from the back-up light.

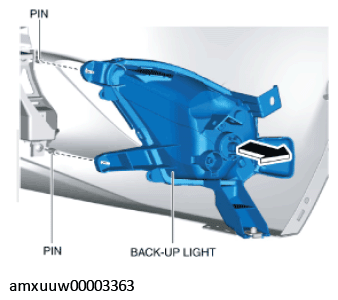

  7. Remove the back-up light.
    G11275379Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
