Back-Up Light Switch Inspection

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Lift up the vehicle.
Remove the bolts.

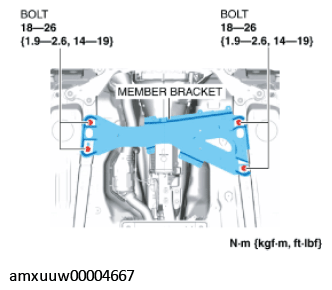

Fig 1: Member Bracket Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the member bracket.

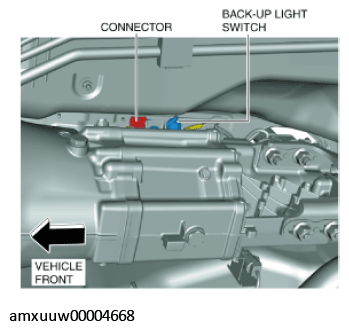

Disconnect the connector.

Courtesy of MAZDA MOTORS CORP.
Verify that the continuity between the back-up light switch terminals is as indicated in the table.

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the back-up light switch. (See BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION [M66M-D] .)
