Front Side Marker Light Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the steering wheel to the side where the light is to be removed until it locks.
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Partially peel back the front mudguard No. 1 and front mudguard No. 2. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)

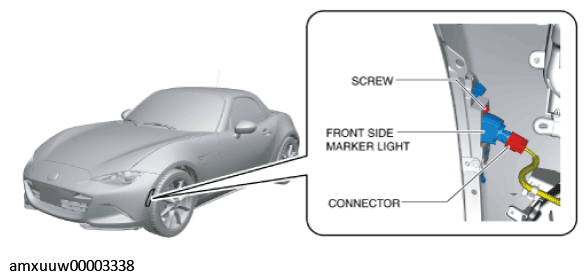

  4. Disconnect the connector.
    G11275398Courtesy of MAZDA MOTORS CORP.
  5. Remove the screw.

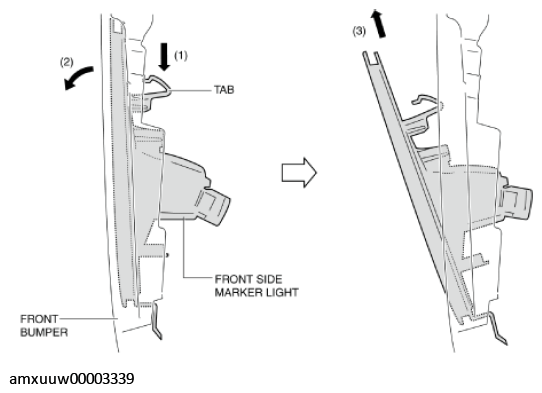

  6. While pressing the front side marker light tab in the direction of arrow (1) shown in the figure, pull the front side marker light in the direction of arrow (2) and detach the front side marker light tab from the front bumper.
    G11275399Courtesy of MAZDA MOTORS CORP.
  7. Pull the front side marker light in the direction of arrow (3) shown in the figure and remove it from the front bumper.
  8. Install in the reverse order of removal.
