Retractable Fastback

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

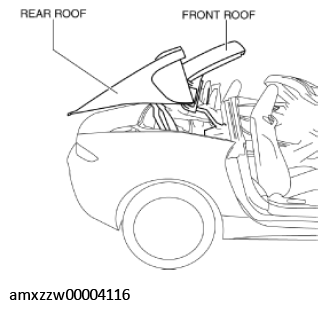

  1. Using the retractable fastback switch, keep the rear roof open.
    G11274598Courtesy of MAZDA MOTORS CORP.

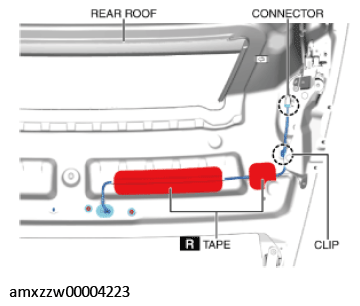

  2. Remove the tape.
    G11275425Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the connector.
  4. Remove the clip.
  5. Remove the nuts.

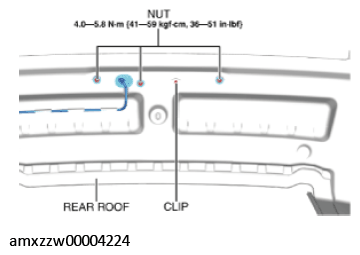

    Fig 1: Rear Roof, Clip And Nuts With Torque Specification
    G11275426Courtesy of MAZDA MOTORS CORP.
  6. Remove the clip.
  7. Remove the high-mount brake light.
  8. Install in the reverse order of removal.
