License Plate Light Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

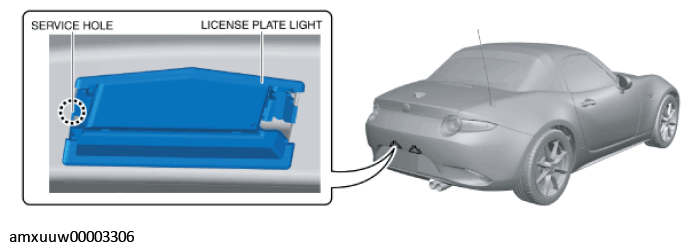

  2. Insert the remover tool into the service hole at the position shown in the figure.
    G11275431Courtesy of MAZDA MOTORS CORP.

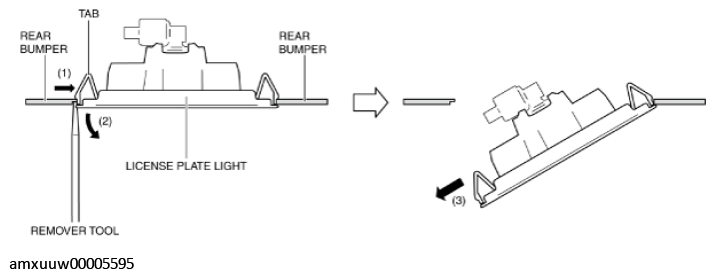

  3. While pressing the license plate light tab in the direction of arrow (1) shown in the figure using a remover tool, pull the license plate light in the direction of arrow (2) and detach the license plate light tab from the rear bumper.
    G11275432Courtesy of MAZDA MOTORS CORP.
  4. Pull the license plate light in the direction of arrow (3) shown in the figure and remove it from the rear bumper.

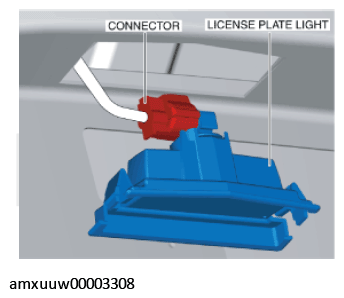

  5. Disconnect the connector.
    G11275433Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
